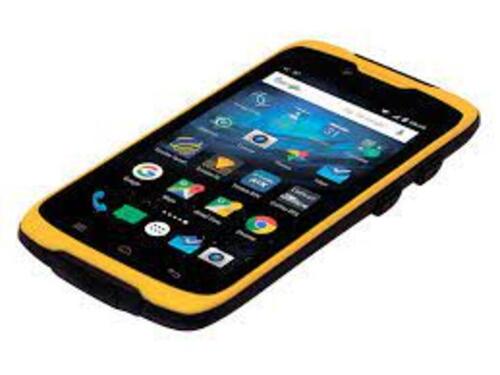

Trimble Juno 5

Product Description

TECHNICAL SPECIFICATIONS

Physical

Size (5B/5D). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15.5 cm x 8.2 cm x 2.5 cm

(6.1 in — 3.2 in — .9 in)

Size (5B/5D Enhanced GPS, Barcode). . . . . . . . . . . . . . . . . . . . 20.98 cm x 8.14 cm x 3.19 cm

(8.26 in — 3.2 in — 1.26 in)

Weight including battery

Juno 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 kg (0.84 lb)

Juno 5 with Barcode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.50 kg (1.10 lb)

Juno 5 with Enhanced GPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.45 kg (0.99 lb)

Juno 5 with Enhanced GPS and Barcode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.50 kg (1.10 lb)

Processor. . . . . . . . . . . . . . 800 MHz (5B) or 1.0 GHz (5D and 5B/5D with Barcode scanner,

Enhanced GPS) OMAP DM3730

Memory. . . . . . . . . . . . . . . . . 8 GB (5B), 16 GB (5D), or 32 GB (5B/5D with Barcode scanner,

Enhanced GPS) built in storage, and 512 MB RAM

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.2 Wh (3.7 V, 3300 mAh)

Lithium-ion polymer battery, rechargeable

Power2

Low (no GPS, backlight on3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 hours

Normal (with GPS and backlight on). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 hours

Environmental (MIL-STD-810G)

Operating temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . “30 C to +60 C (“22 F to +140 F)

Storage temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . “40 C to +70 C (“40 F to +158 F)

Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90% relative humidity with temperatures between

30 C and 60 C (22 F and 144 F) Method 507.5, Procedure II

Water/dust. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Protected against driving rain,

water spray, dust, IEC-60529 IP68

Drop. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.22 m (4 ft.), Method 516.6, Procedure IV, Transit Drop

Vibration. . . . . . . . . . . . . . . . . Vibration resistant, Method 514.6, Procedure I & II, Category 5

Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,572 m (15,000 ft) at 23 C (73 F)

to 12,192 m (40,000 ft) at “30 C (“22 F)

Method 500.5, Procedure I, II & III

Input/output

Expansion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . microSD Card slot

Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.9 cm (4.3 in) WVGA TFT (480 x 800 pixel),

capacitive, sunlight readable

Audio. . . . . . . . . . . . . . . . . . . . Built-in microphone and speaker, record and playback utilities

I/O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB 2.0 Host, USB Client

Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bluetooth v2.14 + EDR; Wi-Fi 802.11b/g/n

UMTS / HSPA+, GSM / GPRS / EDGE

UMTS Bands (WCDMA/FDD): 800/850/1900, AWS and 2100 MHz

GSM Bands: 850/900/1800/1900 MHz (data and voice, Juno 5D only)5

Digital camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 megapixel color camera with geotagging

and dual LED flash

GPS

Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 (L1 only)

Integrated real-time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RTCM v2.3

Update rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Hz

Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NMEA-0183, UBX binary

MCX port for optional external GPS antenna

Accuracy (HRMS)6

Real-time (RTCM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2“4 m

Real-time (Enhanced GPS variant, SBAS1, WAAS or EGNOS). . . . . . . . . . . . . . . . . . . . . 1“2 m

Code postprocessed7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2“4 m

SOFTWARE COMPATIBILITY

Please refer to the Product Compatibility matrix.

(www.trimble.com/mappingGIS/productcompatibility)
