Home » Products » Theodolite » Digital Theodolite

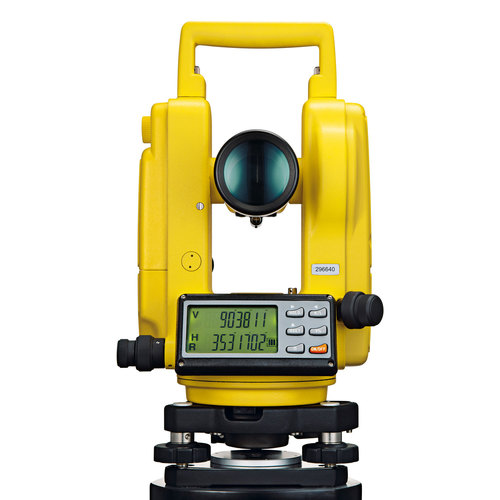

Digital Theodolite

Digital Theodolite
Digital Theodolite
Product Code : ET-02
Product Description

Digital Theodolite

Technical Specifications:

  • Angle Measurement : Measuring Method : Absolute Code, Raster Diameter : 79mm, Min Display Unit : 1″/5″ Selectable, Accuracy : 2
  • Telescope : Image : Erect, Tube Length : 157mm, Effective Aperture : 45mm (EDM:50mm), Magnification : 30x, Field of view : 1°30′, Minimum Focusing Distance : 1.4m, Resolving Power : 3″, Stadia Ratio : 100
  • Auto Compensator : System : Liquid-Electric Detection, Work Range : ±3′, Resolving Power : 1″
  • Vial : Plate Vial : 30″/2mm, Circular Vial : 10′/2m
  • Optical Plummet : Magnification : 3x, Focusing Range : 0.5m~∞, Field of View : 5°
  • Display : Type : LCD Display 2 Sides
  • On-Board Battery : Power Supply : Rechargeable Ni-H Battery/AA Battery, Voltage : DC 6V, Continuous Operation Time : 10 Hours
  • Size & weight : Dimension : L145xH318xW179, Weight : 5.2Kg
